Shengma Cangfeng is an integrated vending machine manufacturer specialising in research, development, production and sales. Possessing robust technical expertise and formidable manufacturing capabilities, it stands as a technological pioneer and dynamic force within China's self-service vending industry.
Payment Method

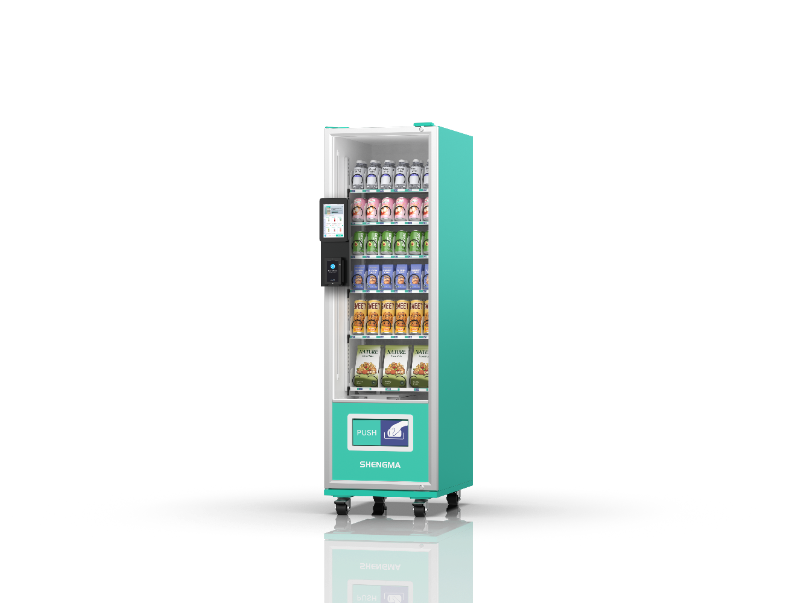

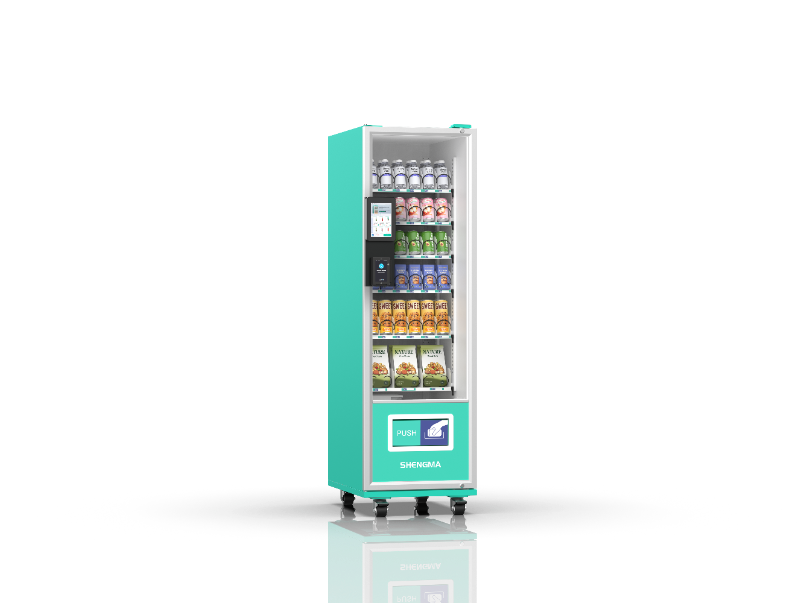

Mixed Style

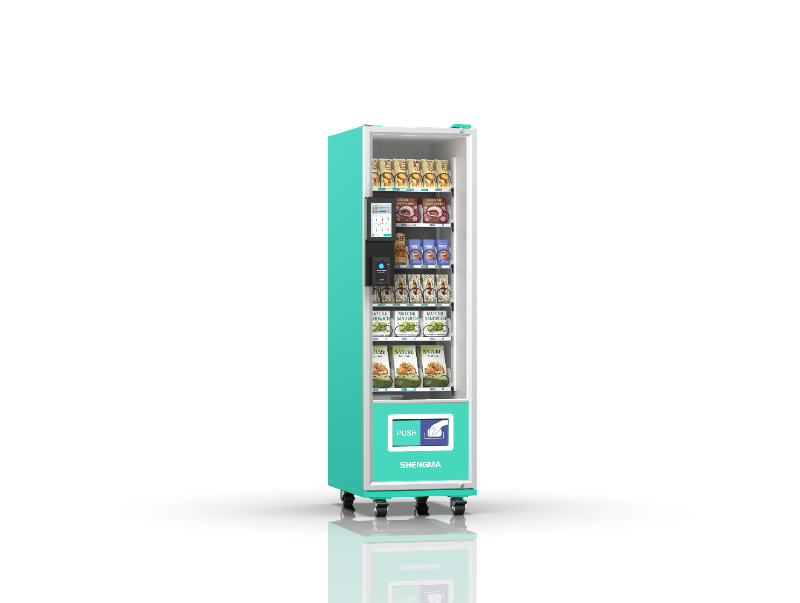

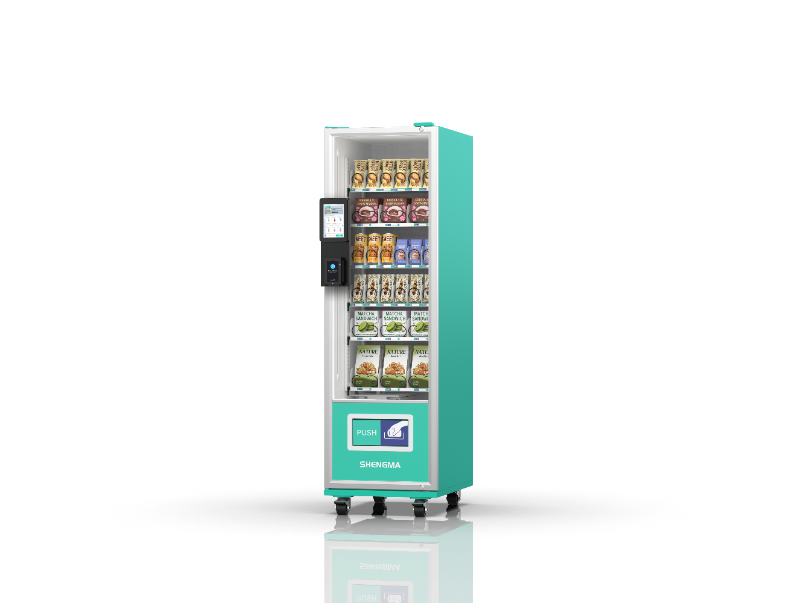

Snacks Style
Beverage Style
1.57" large levelingfeet stabilize the machine on unevenfloors by ensuring perfect balance, preventing tipping.
1.57" large levelingfeet stabilize the machine on unevenfloors by ensuring perfect balance, preventing tipping.
1.57" large levelingfeet stabilize the machine on unevenfloors by ensuring perfect balance, preventing tipping.
Core Selling Point
36 Flexible Trays: Mix spiral and belt trays for bags, bottles, cans, and more.
Shengma Infrared Drop Detection: Automatically refunds or retries on failed delivery, ensuring zero complaints.
Reliable & Durable: High-quality metal body, automotive-grade tempered glass, ideal for high-traffic public spaces.
Product Parameters
Tray Quantity: 36 trays (customizable spiral/belt)
Capacity: 500-600 items
Temperature Range: 3℃-12℃ (auto-constant)

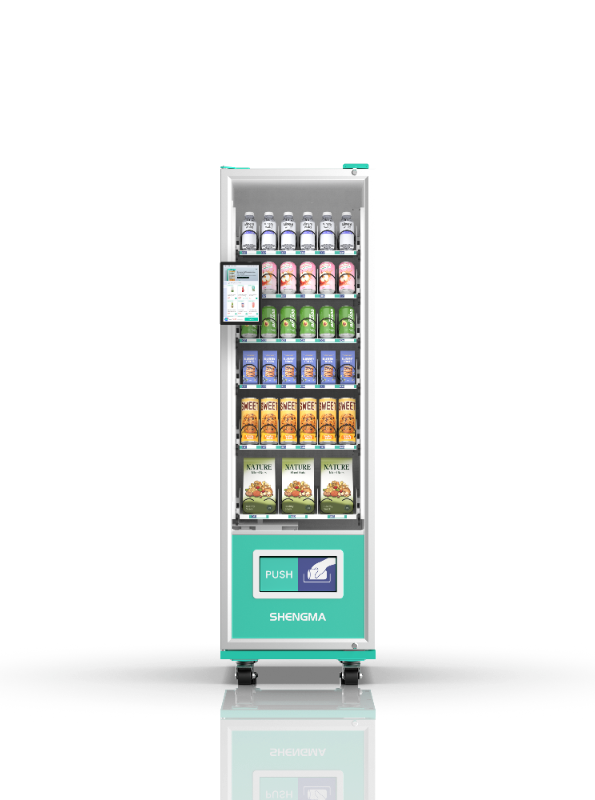

Display: 10.1" or 15.6" HD touch screen
Connectivity: 4G LTE / Wi-Fi
Power: AC 110-240V / 400W
Certifications: CE / FCC / RoHS
Payment Interface
Coin System + Change
Bill Acceptor
WeChat/Alipay QR
Nayax Card Reader
Ingenico/PAX Card Payment
Sunmi Payment Terminal
Int'l Cards/Contactless
Product Portfolio Type
Combo Type A: Standard
Full spiral tray config with coin+ bill acceptors, ideal for cash markets.
Combo Type B: Cashless
Built-in 4G, standard Nayax/Ingenico reader, remote data monitoring and inventory management.
Combo Type C: Touchscreen Advertising
Upgraded 15.6" touchscreen, supports advertising, customizable UI.
Specifications
| Model Name | 60-Aisle Vending Machine |
| Chinese Model Name | 60-channel refrigerated beverage machine for foreign trade |
| Deployment Region | United States |
| Type | Spring Machine |
| Model | SM-ZL-N60 |

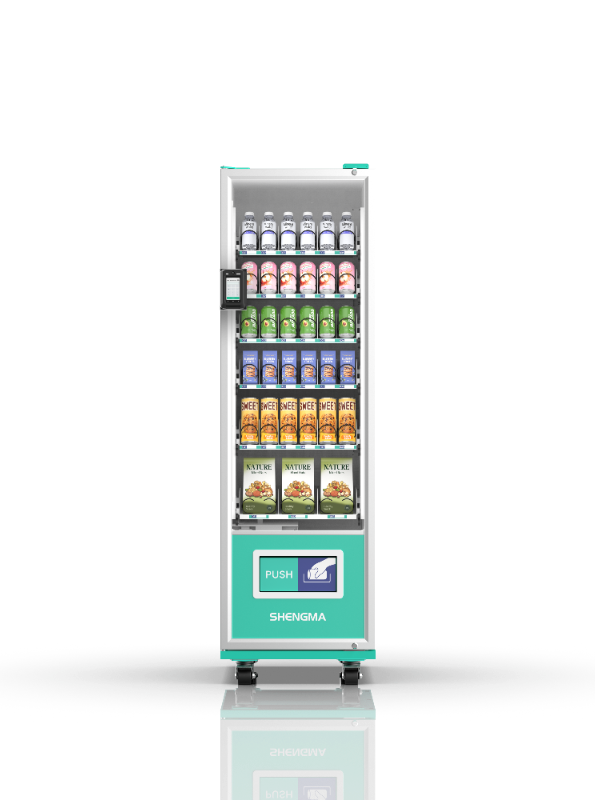

| Screen | PAX Card Reader |
| External Dimensions | 36.6135.2477.76 in |
| Net Weight | 186.5 Kg |
| Normal Temperature Power Consumption | 45 W |
| Cooling Power | 360 W |
| Cooling Temperature | 39-50°F |
| Ambient Temperature (No Direct Sunlight) | 89.6°F |
| PTC Heating Power | 500W |
| Heating Temperature | 86°F |
| Defrosting Power | 40W |
| Rated Voltage | 110V/60HZ |
| Input Current | 4A |
| Combined Power Consumption | 4KWh/24h |
| Plug Type | American Standard Plug |
| Total Volume | 972 L |
| Tray | 6 PCS |
| Payment Methods | Card Payment |
| Cabinet Colour | Tiffany Blue |
| Levelling Supports | 40 Leveling Feet*4 |
| Compliance Standard (Enterprise Standard) | Q/SMKJ 02-2025 |
| Product Capacity | 300 Bottles |
| Lock Installation Method | Cam Lock*2 |
Product Size
CONDENSATE EVAPORATION
The high-capacity drip tray automatically evaporates condensation using the compressor's waste heat, eliminating manual drainagefor hassle-free maintenance.
SECURE DELIVERY BIN
Mechanical Anti-TheftDesign: Opening thedoor automatically engages asecurity shield that blocks access to the delivery bin.
LEVELING FEET
1.57" large levelingfeet stabilize the machine on uneven floors by ensuring perfect balance, preventing tipping.
VENDGO: AFTER-SALES SERVICE
12-MONTH POST-SALES SUPPORTRANTY
We provide free repair services within 12 months for malfunction scaused by quality issues.
OEM/ODM MANUFACTURING SERVICES
On-Demand Custom Vending Machines
(offering variouscustomization services such as slots appearance, payment systems, etc.)
LIFETIME TECHNICAL SUPPORT
We adopt a service mechanism where multiple technicians connect with a single client for technical support. We will provide you with professional services at any time for any issues.
FREE GUIDANCE
We provide you with the corresponding electronic manual for machine usage, operation videos, and free remote guidance services
VENDGO ALL-IN-ONE MANAGEMENT PLATFORM
Enable remote machine management.
MULTI-SCENARIO DEPLOYMENT & 24-HOUR PROFIT GENERATION
PROFESSIONAL ACCESSORIES BUILT TO LAST
VENDGO VENDING MACHINE (60 SLOTS)
Refrigerated Vending Machine
OVERALL SIZE: 36.6*35.2*77.7 in
NET CAPACITY: 457.3L
CAPACITY: 300 bottles
MODEL: SM-ZL-N60
FLOOR: 6th floor
N.W.: 186.5kg
TOTAL POWER: 4KW.h/24h
REFRIGERATED TEMP: 39.2°F-50℉
COOLING METHOD: Air-cooled
PAYMENT METHODS: Swipe card,insert card,NFC
VENDGO 60-SPIRAL
Refrigerated Vending Machine
Heated: Double-Pane Glass
Remote: Management and Control
Cashless: Payment
360°: Universal Wheels
